Projectors are important for modern multimedia presentations, whether for home theaters, business meetings, or big events like concerts and conferences. Two common types are LCD (Liquid Crystal Display) and DLP (Digital Light Processing) projectors. This article compares these technologies in detail, covering how they work, their performance, pros and cons, installation tips, and commercial uses.
What is Projector:
A projector is a device that shows an image or video on a surface or to a screen, used for home entertainment, business presentations, teaching, and big public events. Inside the projector, a small image is created and then enlarged by the projector’s lenses to make a big and clear picture.
Projection Technologies :
Digital Light Processing (DLP):
Digital Light Processing (DLP) is a projector technology developed by Texas Instruments. DLP projectors use a digital micromirror device (DMD) to control light and create images.

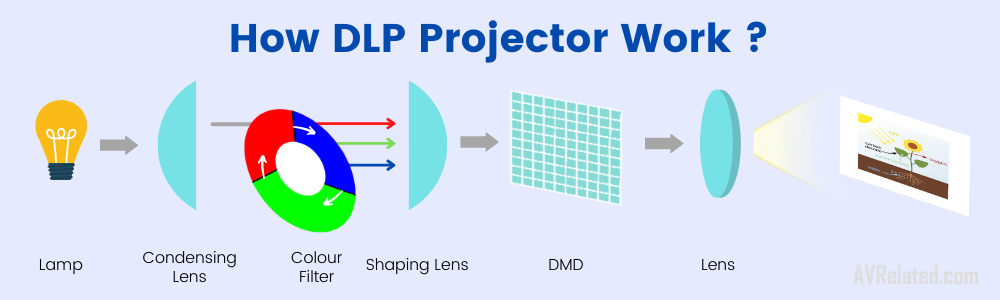

How DLP Works:
1. Digital Micromirror Device (DMD): At the heart of a DLP projector is the DMD chip, which consists of millions of microscopic mirrors. Each mirror represents a single pixel and can tilt to reflect light either towards or away from the projection lens, thus modulating light to create the image.
2. Light Source: A high-intensity lamp, such as a metal halide lamp, or a solid-state light source, such as an LED or laser, provides the illumination that will be controlled by the DMD.
3. Color Wheel: In single-chip DLP projectors, a high-speed rotating color wheel splits the white light into primary colors (red, green, and blue). The color wheel spins in synchronization with the DMD chip, rapidly cycling through each color segment to produce a sequential RGB image. Some advanced DLP projectors use additional segments (such as cyan, magenta, and yellow) to enhance color accuracy and brightness.
4. Projection Lens: The modulated light, now encoded with image data, passes through the projection lens system. The lens focuses and enlarges the image, projecting it onto the screen with high precision and clarity.
Technical Aspects:
1. Resolution: Defined by the number of micromirrors on the DMD chip. Higher resolutions feature a greater number of micromirrors, allowing for finer image detail and sharper clarity.
2. Brightness: Measured in lumens, DLP projectors are renowned for their high brightness levels, typically ranging from 1,000 to 5,000 lumens or more. This high brightness makes them ideal for use in well-lit environments and large venues.
3. Contrast Ratio: Represents the ratio between the luminance of the brightest white and the darkest black. DLP projectors often achieve high contrast ratios, sometimes exceeding 10,000:1, which enhances image depth and overall picture quality.
4. Color Accuracy: Single-chip DLP projectors can experience the “rainbow effect,” characterized by brief flashes of color due to the color wheel’s sequential operation. However, modern advancements, including faster color wheel speeds and additional color segments, have significantly reduced this artifact.
5. Refresh Rate: DLP projectors support high refresh rates, often up to 120Hz or higher. This capability minimizes motion blur and judder, making DLP projectors well-suited for displaying fast-paced video content and gaming.
Liquid Crystal Display LCD:
Liquid Crystal Display (LCD) projectors use liquid crystal panels to control light and create images. They are known for their accurate colors and sharp picture quality.

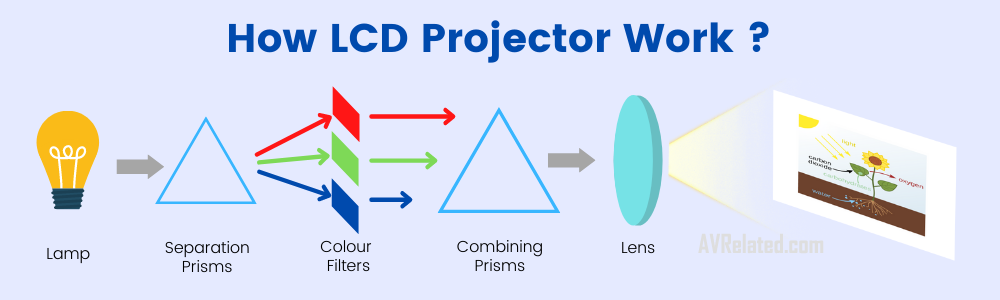

How LCD Works:
1.Liquid Crystal Panels: An LCD projector typically employs three separate LCD panels, each dedicated to one of the primary colors—red, green, and blue. These panels are made of liquid crystal material that can control the passage of light.
2.Light Source: A powerful lamp, often a high-pressure mercury vapor lamp, serves as the light source. This lamp generates a bright white light necessary for the projection process.
3.Beam Splitter: The white light emitted from the lamp is directed towards a beam splitter, composed of dichroic mirrors or prisms. This splitter separates the light into its primary color components—red, green, and blue.
4.LCD Panels: Each separated color beam passes through its corresponding LCD panel. Within these panels, liquid crystals at each pixel can align to either block or allow light to pass through, modulating the intensity of each color. This modulation creates the individual color components of the image.
5.Combiner Prism: After passing through the LCD panels, the modulated red, green, and blue light beams are directed towards a combiner prism. This prism recombines the three color beams into a single, full-color image.
6.Projection Lens: The recombined light, now containing the complete image information, passes through the projection lens system. The lens focuses and magnifies the image, projecting it onto the screen with high resolution and color accuracy.
Technical Aspects:
1.Resolution: The resolution of an LCD projector is determined by the number of pixels in its LCD panels. Higher resolution panels contain more pixels, which results in finer image detail and sharper clarity.
2.Brightness: Measured in lumens, LCD projectors have traditionally been less bright than DLP projectors. However, advancements in lamp technology and light efficiency have significantly improved their brightness levels, making them more competitive in well-lit environments.
3.Contrast Ratio: LCD projectors typically have a lower contrast ratio compared to DLP projectors. This means there is less distinction between the darkest blacks and the brightest whites, which can affect the depth and overall dynamic range of the image.
4.Color Accuracy: LCD projectors excel in color reproduction due to their use of separate light paths for each primary color (red, green, and blue). This design minimizes color blending issues and ensures vibrant, accurate colors, making them ideal for applications where color fidelity is critical.
5.Image Sharpness: LCD projectors are known for producing sharp images because of their fixed pixel structures. The defined boundaries of each pixel result in crisp and clear visuals, particularly noticeable in detailed images and text.
Performance Factors: LCD and DLP
Brightness:
DLP Projectors: DLP projectors are renowned for their high brightness levels, often reaching thousands of lumens. This makes them highly suitable for use in environments with significant ambient light, such as conference rooms and classrooms.
LCD Projectors: Historically, LCD projectors have had lower brightness levels compared to DLP projectors. However, recent advancements in lamp technology and light efficiency are narrowing this gap. LCD projectors are now increasingly suitable for various lighting conditions, though they still perform best in controlled lighting environments.
Contrast Ratio:
DLP Projectors: DLP projectors typically achieve high contrast ratios, which contribute to deep blacks and bright whites. This high contrast enhances the overall perceived image quality, providing a greater sense of depth and realism, especially in dark scenes.
LCD Projectors: LCD projectors generally have lower contrast ratios compared to DLP projectors. This can result in less distinction between dark and light areas, potentially making dark scenes appear more washed out and less detailed.
Image Quality:
DLP Projectors: DLP projectors are known for delivering high image quality, particularly in terms of motion handling. Their high refresh rates reduce motion blur, making them ideal for fast-paced video content and gaming. However, single-chip DLP models can experience the “rainbow effect,” where brief flashes of color are visible.
LCD Projectors: LCD projectors produce sharp, high-quality images due to their fixed pixel structures. They excel in color accuracy and do not suffer from the rainbow effect, making them preferable for applications where image sharpness and color fidelity are critical.
Color Reproduction:
DLP Projectors: DLP projectors generally offer good color reproduction, but single-chip models can encounter color accuracy issues due to the use of a color wheel. The sequential color process can sometimes lead to less precise color blending.
LCD Projectors: LCD projectors provide superior color accuracy because they use separate light paths for each primary color (red, green, and blue). This design ensures rich, accurate colors and reduces the likelihood of color blending issues, resulting in vibrant and lifelike images.
Advantages and Disadvantages
DLP : Advantages
Compact and Lightweight: Typically more portable due to smaller size.
High Brightness: Suitable for various lighting environments.
High Contrast Ratios: Offers enhanced image depth and detail.
Smooth Motion Handling: Ideal for displaying fast-moving content.
LCD : Advantages
Superior Color Accuracy: Uses separate light paths for each color, ensuring precise color reproduction.
Sharp Image Quality: Fixed pixel structures deliver sharp and clear images.
No Rainbow Effect: No issues with color separation artifacts.
DLP: Disadvantages
Rainbow Effect: Brief flashes of color may be noticeable in single-chip models.
Color Wheel Noise: Audible noise from the spinning color wheel.
Heat Generation: Higher brightness levels can result in increased heat output.
LCD: Disadvantages
Lower Brightness: Generally not as bright as DLP projectors.
Lower Contrast Ratios: Provides less distinction between dark and light areas.
Potential for Dust Issues: Accumulated dust can impact image quality over time.
Maintenance and Longevity:
DLP Projectors: Some models feature fewer moving parts, which can result in reduced maintenance requirements.
LCD Projectors: Maintenance needs may be higher due to potential dust-related issues affecting the LCD panels.
