Choosing the right screen size for a room is crucial for audio-visual solution designers. This guide will help both beginners and experienced professionals understand how to calculate the ideal screen size for any room.
Understanding Aspect Ratio

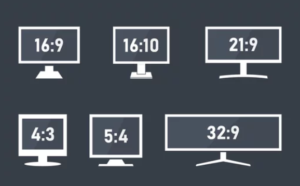

The aspect ratio of a display is the proportional relationship between its width and its height. It is commonly expressed as two numbers separated by a colon, as in 16:9. This means the width is 16 units and the height is 9 units. The aspect ratio is important because it directly relates to the dimensions of the screen and affects the quality of the display.
Steps to Calculate the Ideal Screen Size
Step 1: Determine the Maximum Screen Height
The first step is to figure out how much vertical space is available in the room. For instance, if you have a 9-foot ceiling, you’ll want to subtract unusable space at the top and bottom of the wall. Ideally, there should be 4 feet from the ground level to the bottom of the screen and 1 foot from the top of the ceiling to the top of the screen.
Example: For a 9-foot ceiling height room, the maximum screen height would be 9 – 4 – 1 = 4 feet.
Step 2: Calculate the Distance to the Farthest Viewer
Next, find the farthest viewer in the room. For a conference room that is 28 feet deep, you’ll want to leave some space (like 4 feet, at least) for aisles around the room.
Example: The farthest viewer distance would be 28 Feet – 4 Feet = 24 Feet.
Step 3: Calculate the Optimal Screen Height
The optimal screen height can be calculated using the distance to the farthest viewer divided by 6.
Example: If the farthest viewer distance is 24 Feet, the optimal screen height would be 24 / 6 = 4 Feet.
Step 4: Compare and Decide the Screen Height
Compare the optimal screen height to the maximum screen height. If the optimal screen height is smaller than the maximum screen height, use the optimal screen height measurement. If the optimal screen height is larger than the maximum screen height, use the maximum screen height measurement.
Step 5: Determine the Screen Diagonal
Finally, determine the diagonal measurement of the screen using the screen height. The calculation varies based on the aspect ratio:
- For 16:9 screens, Diagonal = Screen height x 2
- For 21:9 screens, Diagonal = Screen height x 2.5
- For 32:9 screens, Diagonal = Screen height x 3.5
Examples
Let’s consider three different scenarios to cover all the calculations:
Scenario 1: Room with a 9-foot ceiling, 28 feet deep, and a 16:9 screen.
Step 1: Maximum Screen Height = 9 – 4 – 1 = 4 Feet
Step 2: Farthest viewer distance = 28 Feet – 4 Feet = 24 Feet
Step 3: Optimal Screen height = 24 / 6 = 4 Feet
Step 4: Compare 4 Feet (Optimal) with 4 Feet (Maximum). Both are equal, so we use 4 Feet.
Step 5: Diagonal = Screen height x 2 = 4 x 2 = 8 Feet = 96 inches
Scenario 2: Room with a 10-foot ceiling, 30 feet deep, and a 21:9 screen.
Step 1: Maximum Screen Height = 10 – 4 – 1 = 5 Feet
Step 2: Farthest viewer distance = 30 Feet – 4 Feet = 26 Feet
Step 3: Optimal Screen height = 26 / 6 = 4.33 Feet
Step 4: Compare 4.33 Feet (Optimal) with 5 Feet (Maximum). Optimal is smaller, so we use 4.33 Feet.
Step 5: Diagonal = Screen height x 2.5 = 4.33 x 2.5 = 10.83 Feet = 130 inches
Scenario 3: Room with an 8-foot ceiling, 25 feet deep, and a 32:9 screen.
Step 1: Maximum Screen Height = 8 – 4 – 1 = 3 Feet
Step 2: Farthest viewer distance = 25 Feet – 4 Feet = 21 Feet
Step 3: Optimal Screen height = 21 / 6 = 3.5 Feet
Step 4: Compare 3.5 Feet (Optimal) with 3 Feet (Maximum). Optimal is larger, so we use 3 Feet.
Step 5: Diagonal = Screen height x 3.5 = 3 x 3.5 = 10.5 Feet = 126 inches
By following these steps, you can calculate the ideal screen size for each scenario. Remember, the key is to balance the size of the screen with the size of the room and the distance of the viewers. Happy designing!
