RS-485 is a widely used standard for serial data communication, valued for its ability to facilitate long-distance data transmission. Commonly applied in industrial and commercial settings, RS-485 connects devices over extended distances using balanced and differential signaling. This allows for transmission over twisted pair cables without requiring a separate ground line, making it suitable for applications where cable length is a concern.
One of the advantages of RS-485 is its resilience to noise, making it effective in electrically noisy environments. Introduced in 1998 by the Electronic Industries Association (EIA), it is also known as TIA-485 and EIA-485. A key characteristic of RS-485 is its balanced transmission standard, which utilizes two pins each for transmission and reception—one for positive and one for negative—enabling multi-point transmission lines.
Additionally, RS-485 does not require a specific connector or cable standard, although a 9-pin DB9 connector is commonly used. This flexibility allows system designers greater adaptability in their designs, making RS-485 a versatile choice for serial communication, even allowing for strips to be used as connectors in some instances.

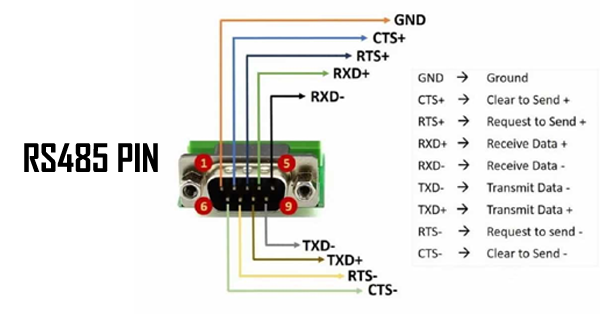

RS485 pinout
Advantage of RS485
- Long-Distance Communication & High Data Rates: RS-485 can communicate over distances of up to 1200 meters (with a data rate limited to 100 kbps) and supports data rates up to 10 Mbps, making it ideal for applications requiring both long-range connectivity and high data throughput.
- Ease of Use & Reliability: RS-485 is a simple protocol that does not require specialized skills for setup and is known for its reliability, making it suitable for mission-critical applications where dependable communication is essential.
- Scalability & Flexibility: The protocol can easily scale to support more devices or higher data throughput as needed and can be adapted to a wide variety of applications, accommodating changing requirements.
- Cost-Effectiveness: RS-485 is typically more economical for long-distance transmission compared to other protocols, providing a cost-effective solution for numerous applications.
- Compatibility & Standards-Based: RS-485 is compatible with a wide range of devices and systems, facilitating easy integration into existing infrastructure. As a standards-based protocol, it is well-documented and has readily available support.
- Ruggedness, Multi-Point Connectivity & Noise Immunity: RS-485 is a robust protocol that can withstand harsh environments, supports multi-point connectivity (up to 32 devices), and is immune to electromagnetic interference from sources like motors and welding equipment, making it effective for variable control in industrial applications.
